CORING RIG
Forward drilling rig will be Europe’s high reliability and china’s manufacturing advantage
made the perfect combination, Rig diesel engine DEUTZ, all hydraulic components from europe and the usa

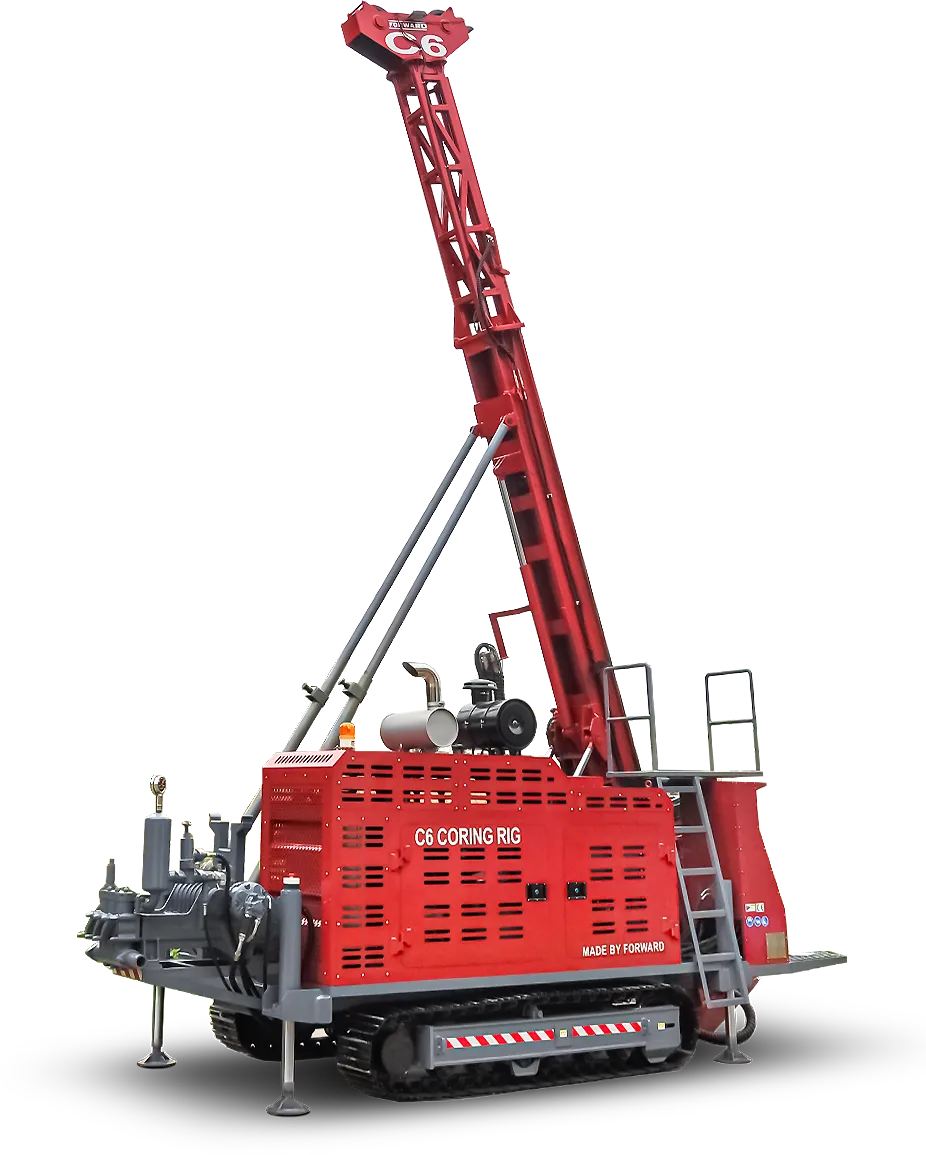

C6 CORE DRILL RIG
The FORWARD GROUP has launched the first of its new range of CORING rigs for the Mineral Exploration industry. The C6 Coring Rig is the result of a collaboration between seasoned field personnel and our own technical design team which includes Australian and German consultants.
FULL
HYDRAULIC
RIG
FORWARD’S new C6 si a compact crawler mounted rig with all the user friendly functions drillers are looking for and all at their fingertips.. The rigs are built under strict quality control protocols and are rigorously tested before dispatch. The C6 has been built with reliability inmind and is assembled using only the very best first-world components such as Sauer Danfoss pumps and PVG valves, Danfoss and Eaton hydraulic motors, Manuli Hoses and Cummins engines
FULL
HYDRAULIC
RIG
| Category | Description |
|---|---|

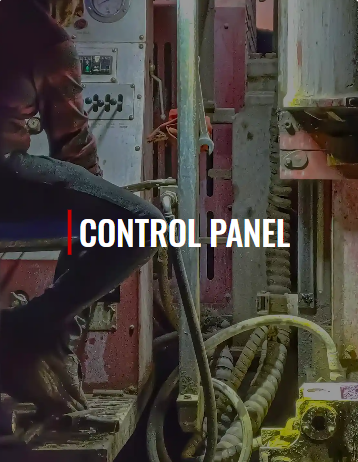

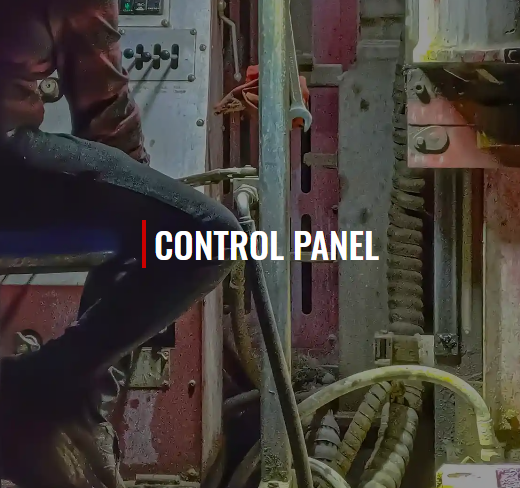

| Control Panel Protection | When the rig is shut down or being transported, the Control Panel can be locked to prevent damage or vandalism. |
| Smooth Control Handling | Both the Rotation and Fine Feed controls are fitted with friction dampeners with positive and easy-to-find neutral positions. |
| Safety Alarm | There is an auto alarm function for low levels of hydraulic oil. |
| Gauge Visibility | All the gauges are conveniently located for ease of monitoring. |
| Category | Description |
|---|---|
| Speed & Compatibility | The 2 Speed Rotation Head can accept all sizes of coring rods up to PQ. |
| Safety & Performance | Patented chuck jaws and a hydraulic opening / spring-close function ensure a fail-safe operation. |
| Design & Maintenance | The Rotation Head is directly connected to the hydraulic feed cylinder, simplifying the mast and reducing maintenance. |
| Side-Sliding Access | The Rotation Head slides off to the side, opening the mast for running casing or pulling tubes. |
| ROD SIZE | MUD FILLED HOLE | |
|---|---|---|
| DRILL Rod/Core Barrel | Hole Depth (Meters) | Hole Depth (Feet) |
| BRQ/BQ | 2009 | 6590 |
| BRQT/BQTK | 2504 | 8215 |
| NRQ/NQ/NQ2 | 1534 | 5032 |
| NRQ V-WALL | 1721 | 5666 |
| HRQ/HQ | 1299 | 4261 |
| HRQ V-WALL | 1390 | 4560 |
| PHD/PQ | 980 | 3215 |
| HRQ V-WALL | 1100 | 3608<
